-NEW GOLD
ELECTROWINNING PLANTS -
Gold EW Plant: 100 kg per week
A
company in Cuba
started production of gold by cyanide leaching, carbon adsorption, and electrowinning.
This was
done using SX Kinetics' modular gold electrowinning production
plant. Gold is plated as gold powder onto stainless steel mesh cathodes and
recovered from the cathodes by power spray wash.

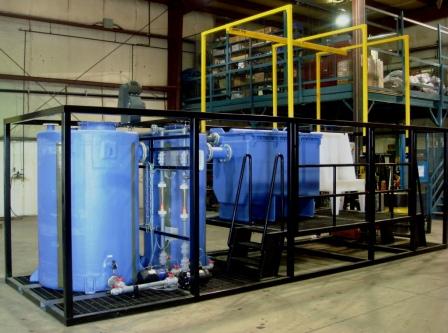

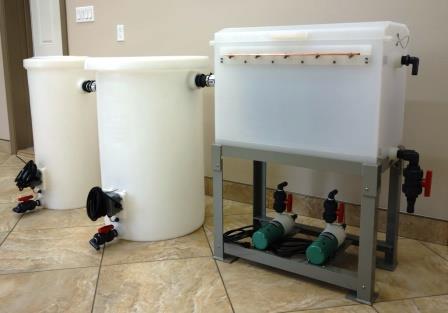

Gold Electrowinning Plant: 5 kg per week
Gold directly from a proprietary leach solution.
This was
done using SX Kinetics' gold electrowinning
plant. Gold is plated as gold metal onto reusable stainless steel cathodes.

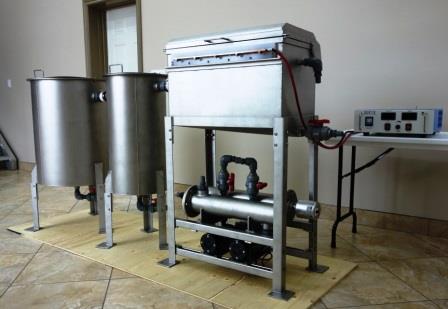

Gold Electrowinning Plant: 5 kg per week
This
gold electrowinning plant was designed and manufactured by SX Kinetics for a
customer in Bolivia.
This
small
plant is for the production of 5 kg of gold per week from carbon elution.
The electrowinning plant included the electrolyte tanks, electrolyte pumps,
the electrowinning cell, heat exchanger, circulation heater and rectifier.
The plant is connected to a carbon elution circuit and it plates gold onto reusable stainless steel cathodes.

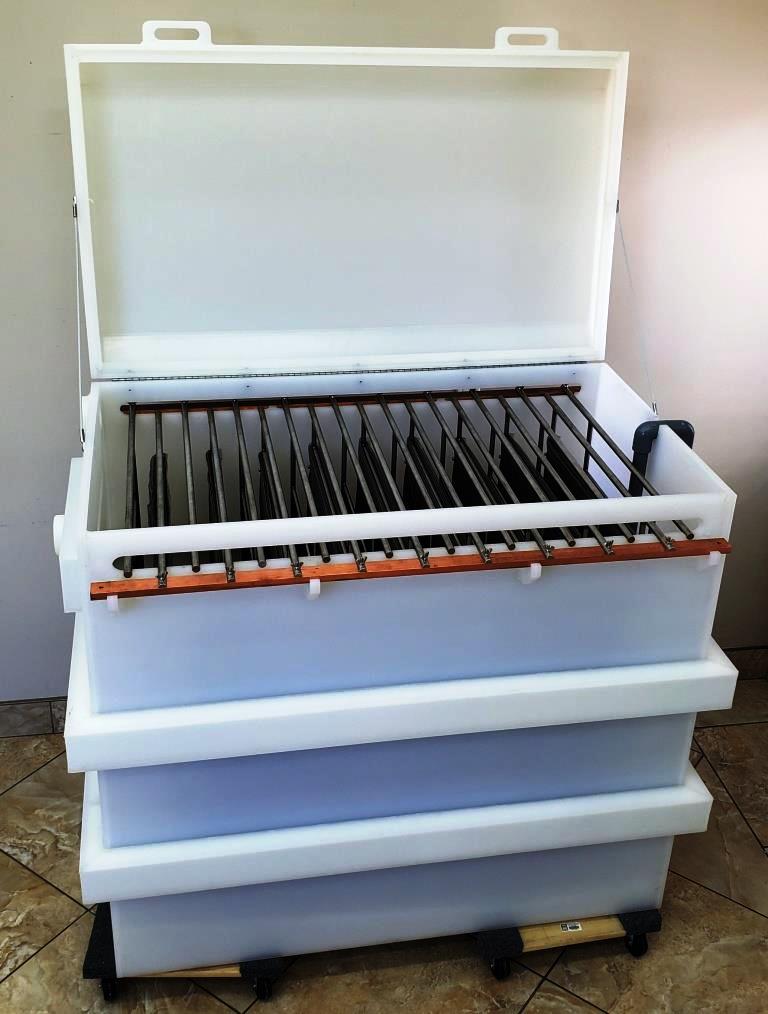

Gold Electrowinning Cell: 100 kg per week
This
gold electrowinning cell was designed and manufactured by SX Kinetics for a
customer in Spain.
This
EW cell with 9 cathodes and 10 anodes is sized to produce up to 100 kg of
gold per week.

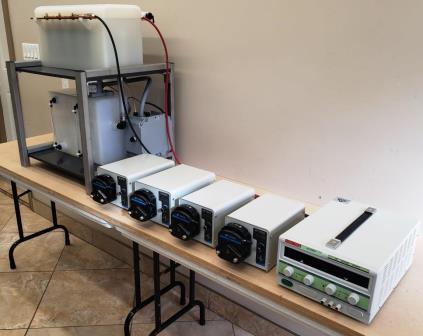

Copper or Cobalt Electrowinning
Pilot Plant: 0.5 kg per day
Electrowinning pilot plant that has the option to use anode diaphragms.
This
EW pilot plant can be coupled to SX Kinetics' SX lab scale pilot plants and
can be used for copper, cobalt, or nickel SX - EW projects.
The EW cell can be used with or
with the anodes in anode diaphragm bags.
SX Pilot Plant for
Manganese
This solvent extraction pilot
plant is for Kemetco Research in Richmond, BC. It will be used to test a new
process to separate manganese from calcium.
|
- FEATURED
PROJECTS -

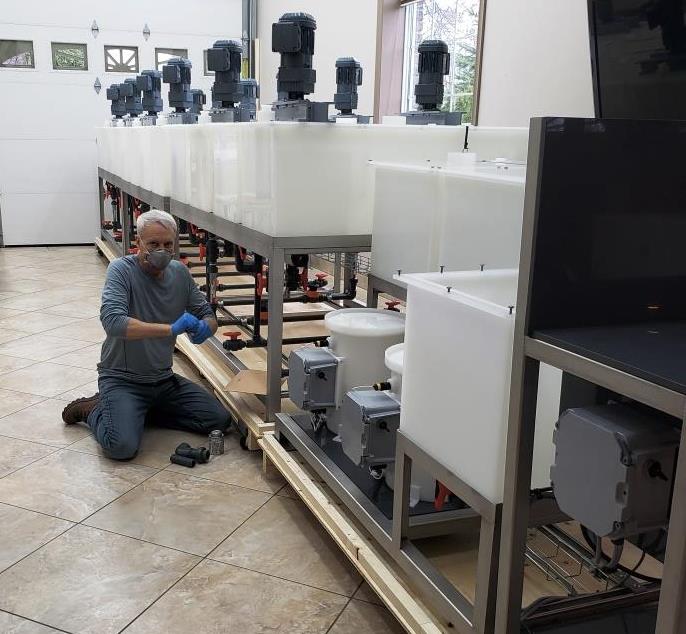

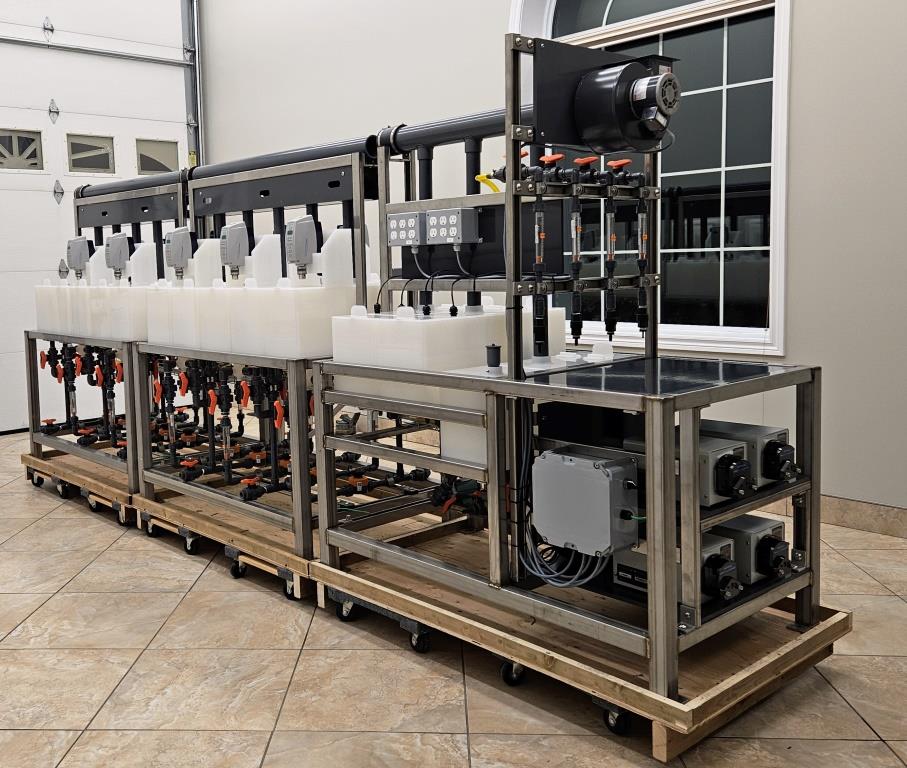

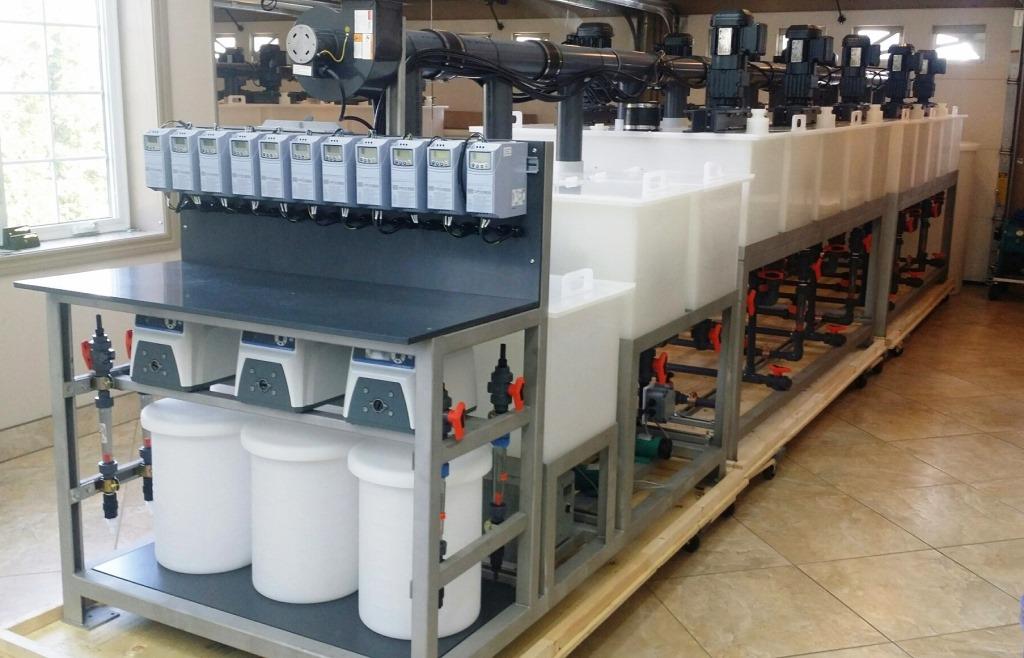

Solvent Extraction Pilot Plant
Building this solvent extraction
pilot plant for a research project to recover scandium from ground water.

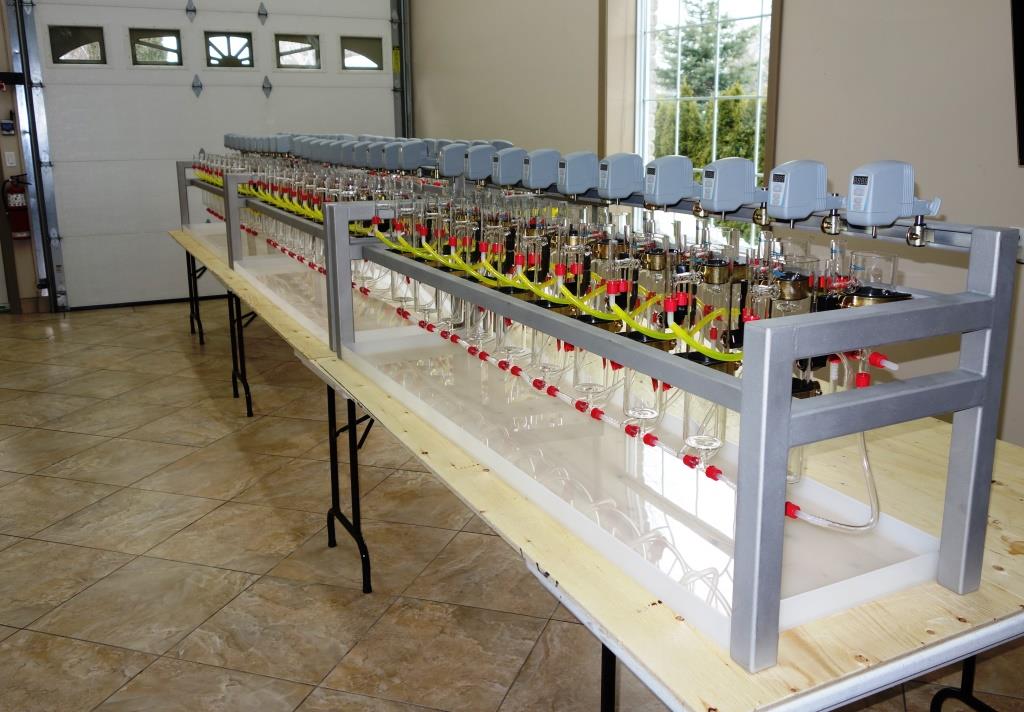

Laboratory Solvent
Extraction Pilot Plant
A university in Belgium purchased
this solvent extraction pilot plant with 20 mixer-settlers for a research
programme aimed at the recovery of metals from recycled electronics.

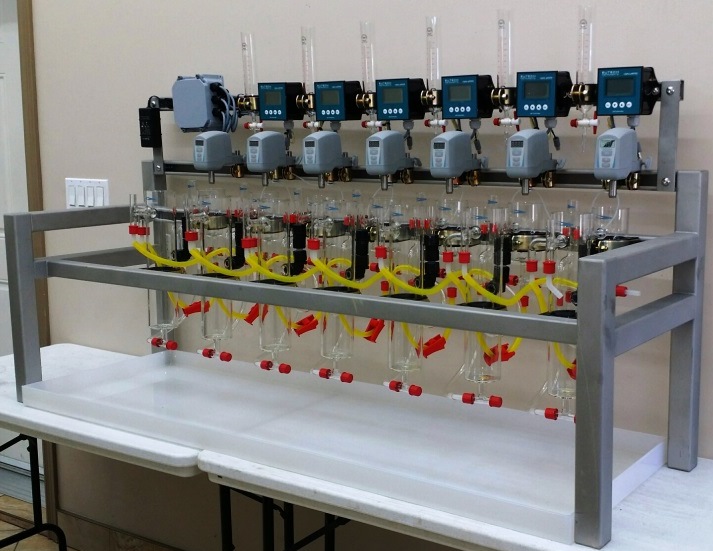

Laboratory Solvent
Extraction Pilot Plant
This solvent extraction pilot plant
with pH controllers was shipped to a customer in Poland.
Scandium Solvent
Extraction Pilot Plant
This solvent extraction pilot plant with 10
mixer-settlers was designed and manufactured for a project in Kentucky, USA.

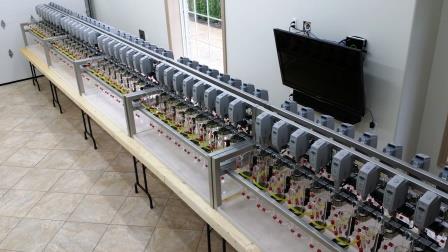

Rare Earth Solvent
Extraction Pilot Plant
A
laboratory solvent extraction pilot plant with 100 mixer-settler stages was
manufactured for a project to recover rare earth metals from coal.

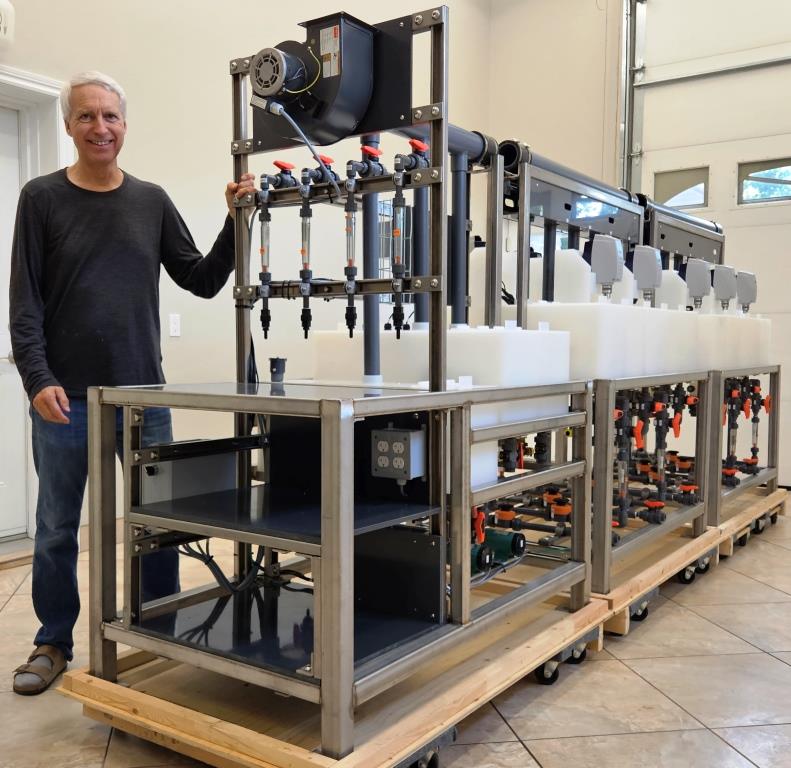

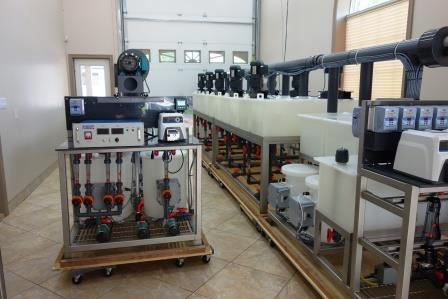

Copper SX - EW Pilot Plant
A
solvent extraction and electrowinning pilot plant was manufactured for a
project to recover copper from scrap electronic waste.
Rare Earth Solvent
Extraction Pilot Plant
A laboratory
pilot plant with 130 mixer-settler stages for solvent extraction of rare
earth metals.
Recovery of Rare Earth Metals by Solvent Extraction

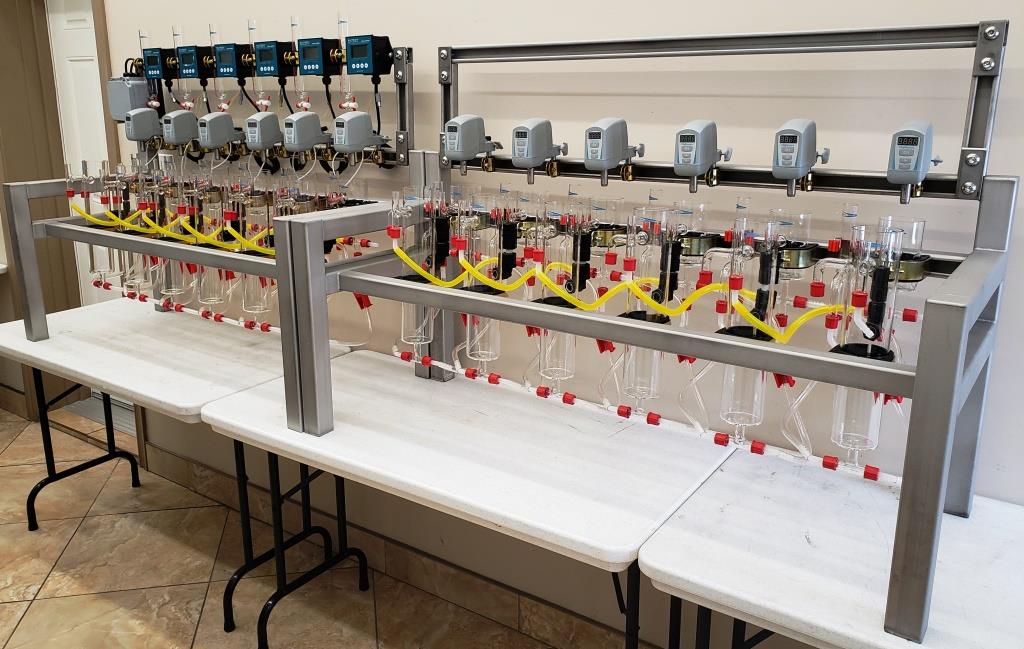

Cobalt Lab scale SX Pilot Plant

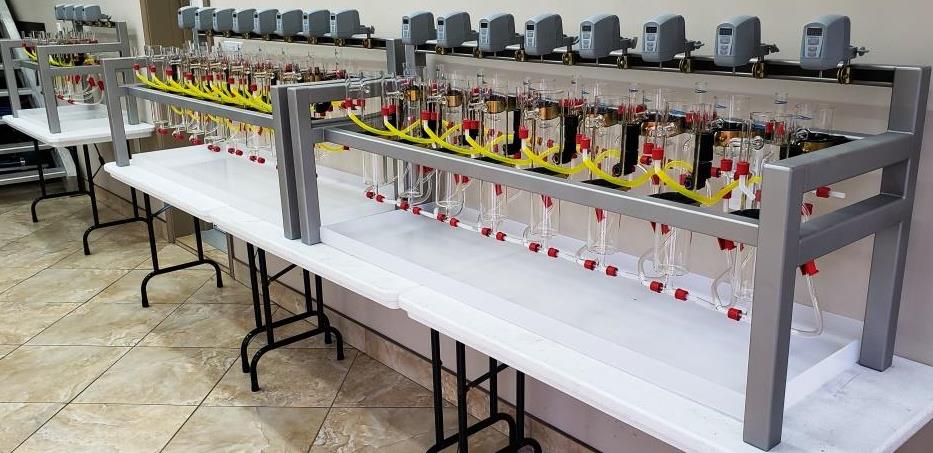

This lab scale
solvent extraction pilot plant has 12 mixer-settlers with 6 pH controllers.
The pH controllers can be re-located to any stage.

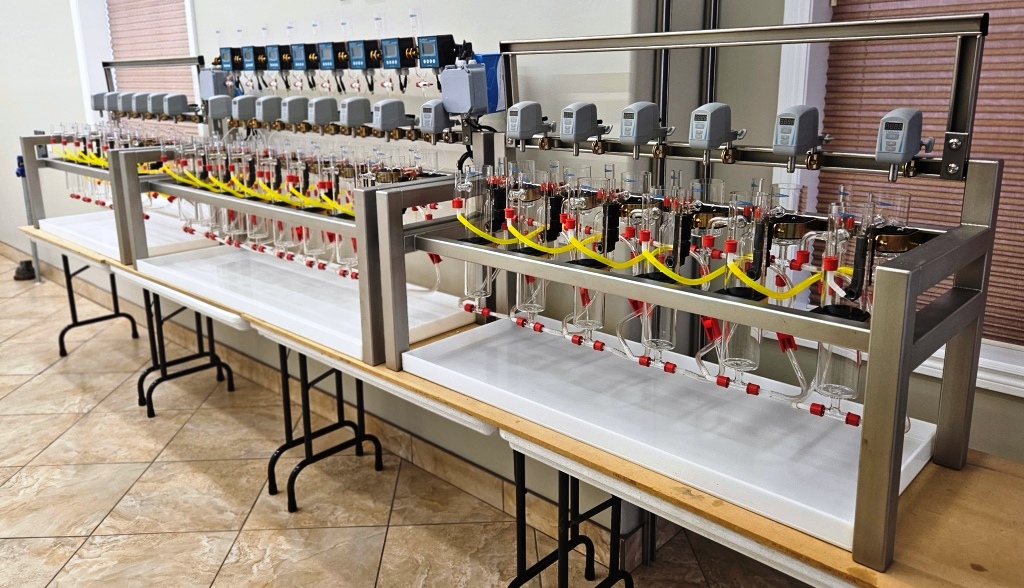

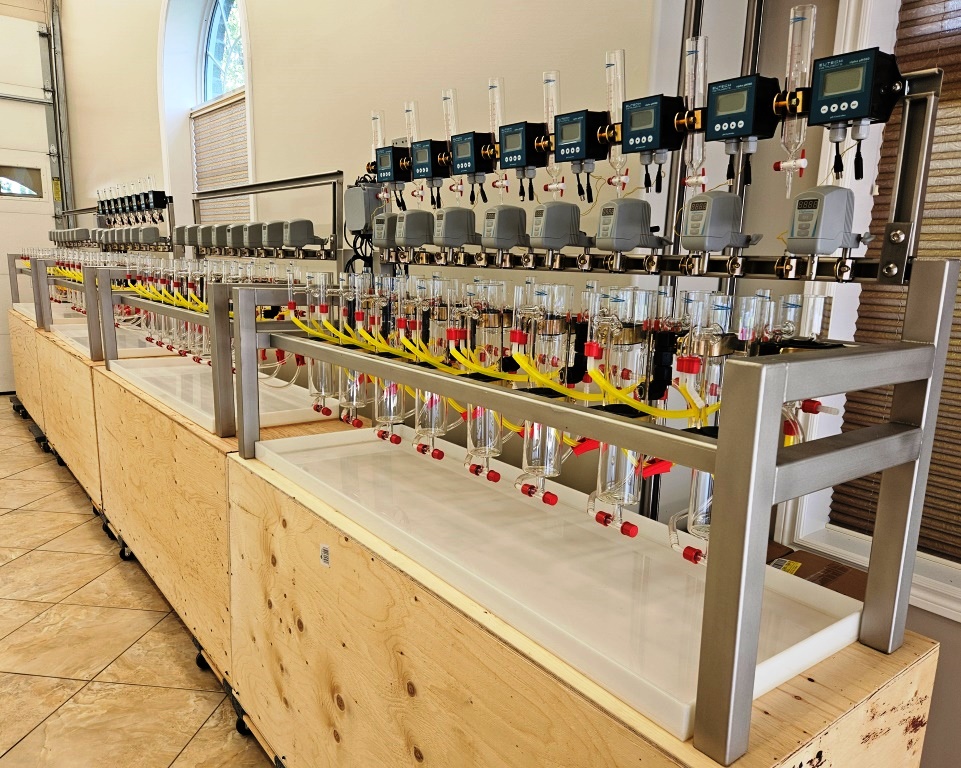

SX Pilot Plant for rare
earth metals

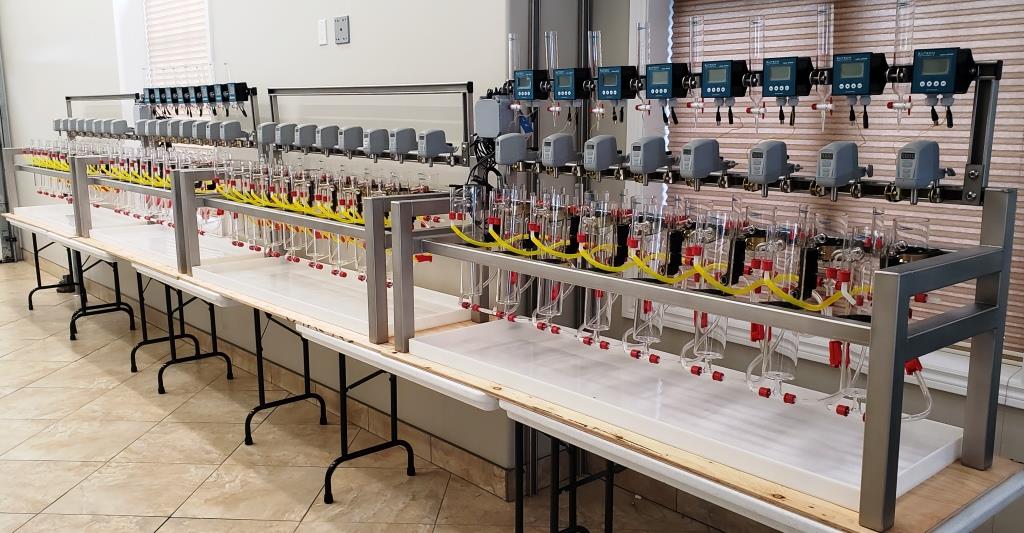

This lab scale
solvent extraction pilot plant has 32 mixer-settlers with 16 pH controllers.
The pH controllers can be re-located to any stage.
|
