We design and manufacture electrowinning pilot plants for a wide variety of applications including laboratory and bench scale test programs for electrowinning copper, cobalt, nickel, chromium, zinc and other metals. Our electrowinning cells can be operated with various numbers of anodes and cathodes and the level of catholyte in the cell can be adjusted to any level giving complete flexibility in the overall plating area on the cathodes. The electrowinning cell is connected to a rectifier with variable DC voltage and amperage output with automatic constant current or constant voltage regulation regardless of resistance changes between the anode to cathode and solution concentration.



Our cathodes can be manufactured from various metals including 316L stainless steel and titanium. We can supply various anode materials to include lead-calcium-tin (Pb-Ca-Sn) and Lead-silver (Pb-Ag) alloys. We can also supply porous anode diaphragm bags in order to keep the anolyte separated from the catholyte.



The following summarizes our electrowinning pilot plants that we recently manufactured for various clients:





Laboratory (bench) scale electrowinning pilot plant with an electrowinning cell, anodes. cathodes, electrolyte vessels, immersion heater, circulation pump, and a rectifier.

For more details: EW pilot plant sxk-36

Client:  Moscow State Institute of Steel and Alloys (Technological University)
Site Location:  Moscow, Russia
Plant Capacity: 25 g Copper per hour

Project Number: sxk-36



SX Kinetics designed and manufactured this electrowinning  pilot plant for a copper solvent extraction project in Russia. This EW pilot plant was coupled to the SX pilot plant as shown at:

SX pilot plant sxk-36




Electrowinning pilot plant with an electrowinning cell, anodes. cathodes, electrolyte vessels, immersion heater, and circulation pump.

Client:  Southern Peru Copper Corporation
Site Location:  Toquepala, Peru
Plant Capacity: 208 g Copper per hour

Project Number: sxk-41



SX Kinetics designed and manufactured this electrowinning  pilot plant for electrowinning investigations at the Toquepala copper leach - solvent extraction- electrowinning plant in Peru. The pilot plant included the following:

  • Electrowinning cell with 10 cathodes and 11 anodes

  • Rectifier with 0 to 300 amperes and 0 to 5 VDC out

  • Electrolyte tanks with teflon coated immersion heater

  • Variable speed circulation pump

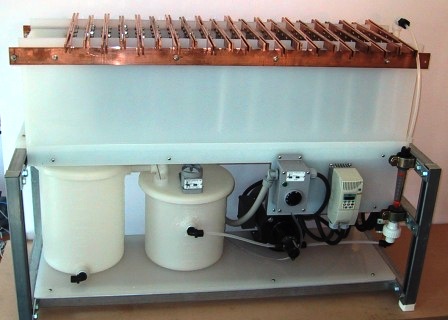

Close-up view of the EW pilot plant



Electrowinning pilot plant with an electrowinning cell, anodes. cathodes, electrolyte vessels, immersion heater, circulation pump, and  rectifier.



EW pilot plant shown with rectifier



For more details: EW pilot plant sxk-41





Laboratory (bench) scale electrowinning pilot plant with solvent extraction pilot plant.

For more details: EW pilot plant sxk-44

Client: Erdenet Mining Corporation
Site Location:  Erdenet, Mongolia
Plant Capacity: 60 g Copper per hour

Project Number: sxk44



SX Kinetics designed and manufactured this electrowinning  pilot plant for a copper solvent extraction project in Mongolia. This EW pilot plant was coupled to the SX pilot plant shown in the background of the photo.




Electrowinning pilot plant for a University in Moscow, Russia.

For more details: EW pilot lant sxk-42

Client:  Moscow State Institute of Steel and Alloys (Technological University)
Site Location:  Moscow, Russia
Plant Capacity: 25 g Copper per hour

Project Number: sxk-42



SX Kinetics designed and manufactured this electrowinning  pilot plant for a University in Moscow, Russia. This EW pilot plant was coupled to the continuous leaching and SX pilot plant as shown at: SX pilot plant sxk-45




Electrowinning pilot plant with 1000 amp rectifier and cell having 8 cathodes and 9 anodes.

For more details: EW pilot plant sxk-55

Client:  IMPRC
Site Location:  Tehran, Iran
Plant Capacity: 1,250 g Copper per hour

Project Number: sxk-55



SX Kinetics, Inc. designed and manufactured this electrowinning pilot plant for the electrowinning of copper, cobalt, and nickel.




An electrowinning pilot plant for the recovery of copper from an ore body in Israel.

For more details: EW pilot plant sxk-63

Client: Arava Mines Ltd
Site Location: Southern, Israel
Plant Capacity: 30 g Copper per hour

Project Number: sxk-63



SX Kinetics, Inc. designed and manufactured this laboratory scale electrowinning pilot plant for a copper project in Israel.

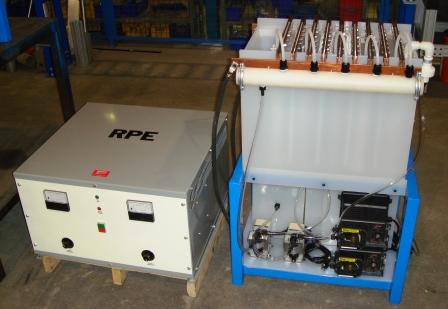

Electrowinning pilot plant for the production of zinc from electric arc furnace (EAF) dust.

For more details: EW pilot plant sxk-65

Client: Immanuel Technological Solutions
Site Location: Mississauga, ON, Canada
Plant Capacity: 180 g Zinc per hour

Project Number: sxk-65



This laboratory electrowinning pilot plant was designed and manufactured by SX Kinetics for a project to recover zinc from EAF (electric arc furnace) dust.




Copper electrowinning pilot plant for a project in Peru.

For more details: EW pilot plant sxk-71

Client: Minera Pampa de Cobre
Site Location: Arequipa, Peru
Plant Capacity: 28 kg copper per day

Project Number: sxk-71



This electrowinning pilot plant was designed and manufactured by SX Kinetics for a copper heap leaching / solvent extraction / electrowinning project in Southern Peru.




Copper electrowinning pilot plant for a project in Peru.

For more details: EW pilot plant sxk-72

Client: Rio Tinto & SNC Lavalin
Site Location: Northern Peru
Plant Capacity: 80 kg copper per day

Project Number: sxk-72



This electrowinning pilot plant was designed and manufactured by SX Kinetics for a copper heap leaching / solvent extraction / electrowinning project in Northern Peru.

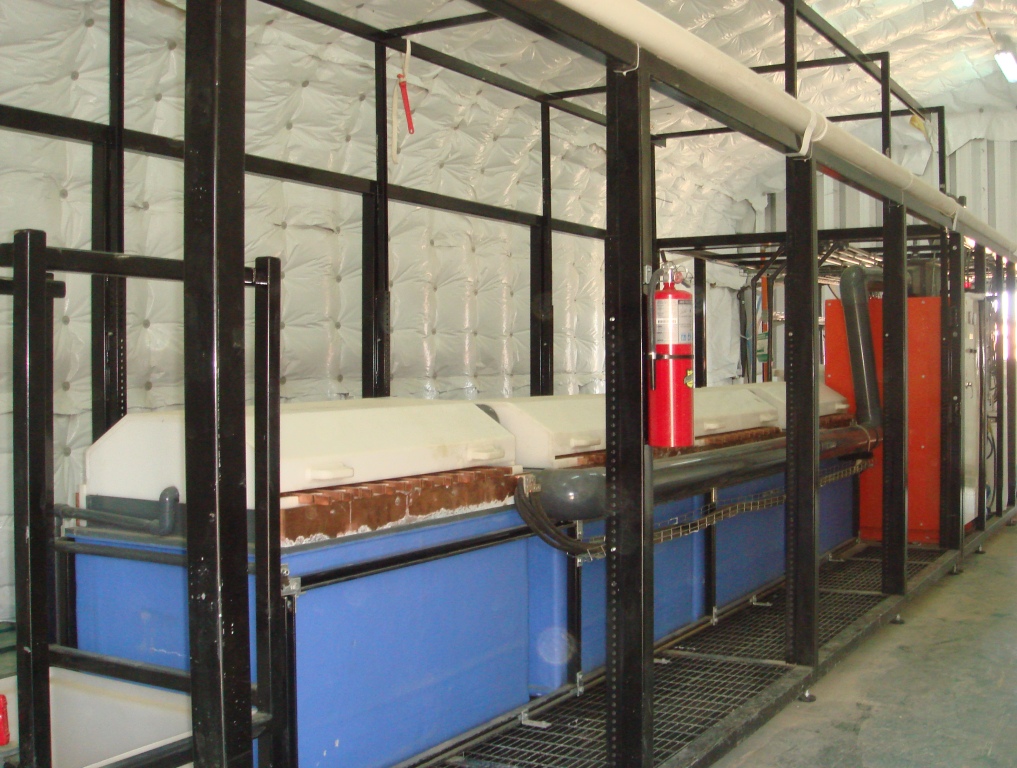

Electrowinning demostration plant for the production of copper from waste rock in Kazakhstan.

For more details: EW pilot plant sxk-76

Client: Sary Kazna LLP
Site Location: Kounrad, Kazakhstan
Plant Capacity: 240 kg per day copper

Project Number: sxk-76



This electrowinning pilot plant was designed and manufactured by SX Kinetics for a copper heap leaching / solvent extraction / electrowinning project in Kounrad (near Balqash), Kazakhstan. This electrowinning plant was couple to our solvent extraction plant: SX pillot plant sxk-76




Rectifier for a gold electrowinning cell for production of gold.

Client:  C.V. Geodrill Indonesia
Site Location: Indonesia
Plant Capacity: 140 kg per day of gold

Project Number: sxk-36



SX Kinetics provided this gold electrowinning plant to a mining company in Indonesia.



Rectifier for electrowinning of Gold




Gold electrowinning cell with 15 cathodes and 16 anodes.




Electrowinning cell for Gold





Carbon adsorption and electrowinning of gold.

For more details: EW pilot plant sxk-102

Client: Private Individual
Site Location: Dar Es Salaam, Tanzania
Plant Capacity: 20 kg gold per month

Project Number: sxk-102



This electrowinning pilot plant was designed and manufactured by SX Kinetics for production of gold from a placer deposit in Tanzania. The process consisted of vat leaching with NaCN followed by carbon adsorption and electrowinning onto steel wool cathodes.




Gold electrowinning pilot plant for a project in Mexico.

For more details: EW pilot plant sxk-109

Client: Pacific Comex
Site Location: Sonora, Mexico
Plant Capacity: 1 kg gold per week

Project Number: sxk-109



This electrowinning pilot plant was designed and manufactured by SX Kinetics for a project in northern Mexico. The process consisted of heap leaching with NaCN followed by direct electrowinning onto steel wool cathodes.




For more details: EW pilot plant sxk-127

Client: Metric PC Systems

Site Location: Texas, USA

Plant Capacity: 100 mL per minute

Project Number: sxk-127



A prototype electrolysis cell was manufactured as per the customer’s design. The prototype cell was used for generation of chlorine gas for cobalt oxidation.




For more details: EW pilot plant sxk-142

Client: Soltin Investments Inc.

Site Location: Cuba

Plant Capacity: 100 kg gold per week

Project Number: sxk-142



SX Kinetics’ designed and manufactured a gold electrowinning production plant for a mine in Cuba. The plant electrowins gold onto re-useable stainless steel cathodes.




For more details: EW pilot plant sxk-164

Client: ITS Science & Medical PTE Ltd.

Site Location: Indonesia

Plant Capacity: 25 g Copper per hour

Project Number: sxk-164



SX Kinetics designed and manufactured this electrowinning pilot plant for a customer in Indonesia.




For more details: EW pilot plant sxk-131

Client: Rio Tinto

Location: Utah, USA

Capacity: 240 kg copper per day

Project Number: sxk-131



This electrowinning pilot plant was designed and manufactured by SX Kinetics for a copper heap leaching / solvent extraction / electrowinning project in Utah, USA.

SX Kinetics also built the solvent extraction pilot plant for this project at: SX pilot plant sxk-131








For more details: EW pilot plant sxk-167



Client: Technology Innovation

Location: Saudi Arabia

Capacity: 1 kg gold per week

Project Number: sxk-167



This electrowinning pilot plant was designed and manufactured by SX Kinetics for a gold agitation leaching / electrowinning project in Saudi Arabia.



For more details: EW pilot plant sxk-184



Client: Comprominsa

Location: Bolivia

Capacity: 2.5 kg gold per week

Project Number: sxk-184



This electrowinning plant was designed and manufactured by SX Kinetics for production of gold from carbon adsorption / elution. The plant was manufactured from stainless steel so that it can be operated at high temperature.





For more details: EW pilot plant sxk-185



Client: E.M.S. Manufacturing

Location: USA

Capacity: 2.5 kg gold per week

Project Number: sxk-185



This electrowinning plant was designed and manufactured by SX Kinetics for production of gold from a proprietary leach solution. The plant was manufactured from polypropylene.

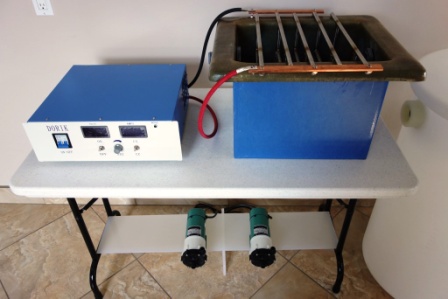

For more details: EW pilot plant sxk-190



Client: Private Company

Location: Saudi Arabia

Capacity: 1 kg gold per week

Project Number: sxk-190



This electrowinning plant was designed and manufactured by SX Kinetics for production of up to 1 kg of gold per week. The cell was manufactured from fibreglass.

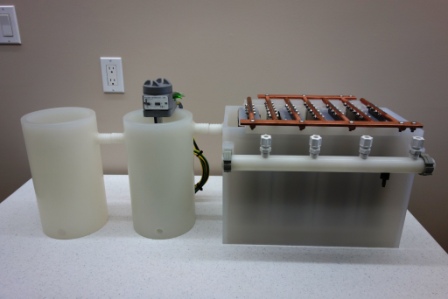

For more details: EW pilot plant sxk-191

Client: BASF

Location: Tucson, Arizona, USA

Capacity: 0.5 kg iron per day

Project Number: sxk-191



This electrowinning plant with anode diaphragms was designed and manufactured by SX Kinetics for iron electrowinning. The plant was manufactured from polypropylene.





For more details: EW pilot plant sxk-192



Client: Oro Roca

Location: Costa Rica / Nicarauga

Capacity: 2.5 kg gold per week

Project Number: sxk-192



This electrowinning plant was manufactured by SX Kinetics for a gold project in Nicarauga. The plant was manufactured from fibreglass.



  Gold electrowinning plant for a project in Honduras.

For more details: EW pilot plant sxk-195



Client: Cinco Precious Metals

Location: Honduras

Capacity: 2.5 kg gold per week

Project Number: sxk-195



This electrowinning plant was manufactured by SX Kinetics for a gold project in Honduras. The plant was manufactured from fibreglass.

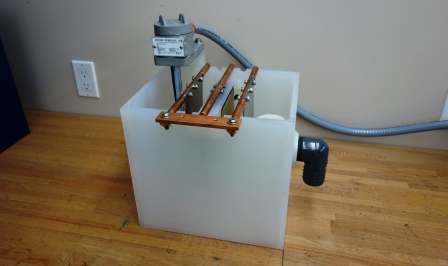

For more details: EW pilot plant sxk-200



Client: Chemetics, Inc.

Location: Canada

Capacity: 1 kg Fe+3 to Fe+2 per week

Project Number: sxk-200



This electrowinning plant was designed and manufactured by SX Kinetics for research into a process for the deduction of iron.

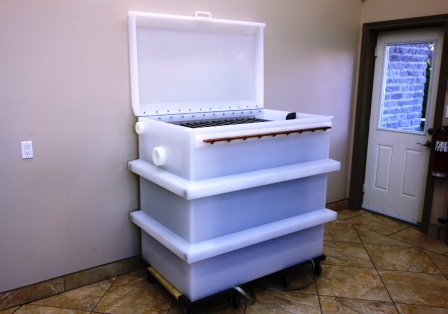

For more details: EW pilot plant sxk-203

Client: L &  B Testing Services

Location: Ghana

Capacity: 50 kg gold per week

Project Number: sxk-203



This electrowinning cell was manufactured by SX Kinetics for a gold project in Ghana. The electrowinning cell was provided with a 300 amp rectifier.



For more details: EW pilot plant sxk-207

Client: BASF Corp.

Location: USA

Capacity: 200 g copper per hour

Project Number: sxk-207



This electrowinning cell was manufactured by SX Kinetics for a copper electrowinning research. The electrowinning cell was provided with 5 cathodes and 6 anodes.





For more details: EW pilot plant sxk-214

Client: Lomati Mine Pty Ltd

Location: Swaziland

Capacity: 2.5 kg gold per week

Project Number: sxk-214



SX Kinetics manufactured this gold electrowinning cell for a company in Swaziland.

Be aware that Mr. David Kirschenbaum at this company can't be trusted to pay an invoice. He decided not to pay SX Kinetics for extra cathodes. His contact information is:

David Kirschenbaum
71 Abbey Close, Scarsdale, NY 10583
+1 917-361-7000

  An electrowinning pilot plant for production of 22.5 kg of copper per day

For more details: EW pilot plant sxk-212

Client: Université de Liège

Location: Belgium

Capacity: 22.5 kg copper per day

Project Number: sxk-212



This electrowinning pilot plant with the solvent extraction pilot plant was designed and manufactured by SX Kinetics for the recovery of copper from scrap electronics.

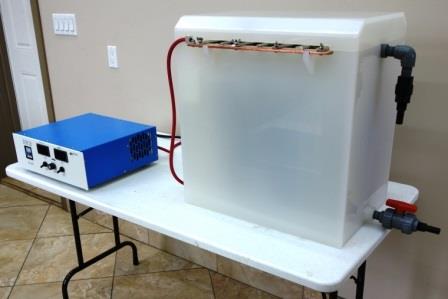

  Gold electrowinning cell and rectifier.

For more details: EW pilot plant sxk-218

Client: JRB Management / Agua Dulce

Location: Utah, USA

Capacity: 5 kg gold per week

Project Number: sxk-218



SX Kinetics manufactured this gold electrowinning cell for a company in the USA.

  Copper electrowinning cell and rectifier.

For more details: EW pilot plant sxk-226

Client: Graidco BV / Ministry of Minerals and Mines

Location: Poland / Zambia

Capacity: 0.5 kg copper per day

Project Number: sxk-226



SX Kinetics manufactured this electrowinning pilot plant for a copper project in Zambia.

  Gold electrowinning cell and rectifier.

For more details: EW pilot plant sxk-234

Client: Golden Predador Mining Corp

Location: BC, Canada

Capacity: 5.25 kg gold per week

Project Number: sxk-234



SX Kinetics manufactured this electrowinning cell for a gold project in Canada.



  5.25 kg Gold per week electrowinning cell with rectifier.

For more details: EW pilot plant sxk-242

Client: Jade Plant and Machinery Ltd.

Location: Hampshire, UK

Capacity: 5.25 kg gold per week

Project Number: sxk-242



SX Kinetics manufactured this electrowinning cell for a gold project in the UK.



  Lab scale copper electrowinning pilot plant.

For more details: EW pilot plant sxk-243

Client: HDR Engineering Inc.

Location: USA

Capacity: 0.5 kg copper per day

Project Number: sxk-243

SX Kinetics built this copper EW pilot plant for a customer in the US.



  Gold electrowinning cell with rectifier and cathode rinse tank.

For more details: EW pilot plant sxk-245

Client: Cribas y Tamices Intervenispa, S.L.

Site Location: Spain / Cuba

Plant Capacity: 100 kg gold per week

Project Number: sxk-245



SX Kinetics’ designed and manufactured a\this gold electrowinning cell for a production plant in Cuba. The cell has re-useable stainless steel cathodes. A rectifier and cathode rinse tank were also provided with the cell.



  Copper electrowinning pilot plant.

For more details: EW pilot plant sxk-254

Client: Inter Reliance Logistics, LLC

Location: Mongolia

Capacity: 0.5 kg per day

Project Number: sxk-254



SX Kinetics manufactured this electrowinning pilot plant for a research centre in Mongolia.



  Cobalt electrowinning pilot plant.

For more details: EW pilot plant sxk-261

Client: Lithion Recycling Inc.

Location: Quebec, Canada

Capacity: 0.5 kg per day

Project Number: sxk-261



SX Kinetics manufactured this electrowinning pilot plant for a research centre in Quebec. The EW cell has the option to be use with anode diaphragm bags. It can be used for copper EW project without the diaphragm bags or it can be used for electrowinning of cobalt or nickel with the anode bags.




  Copper electro-refining cell

For more details: EW pilot plant sxk-272

Client: pH 7 Technologies

Location: BC, Canada

Capacity: 2 kg per day

Project Number: sxk-272



SX Kinetics manufactured this copper electro-refining cell for a company in British Columbia, Canada.




  This EW pilot plant can be used for copper EW project without the diaphragm bags or it can be used for electrowinning of cobalt or nickel with the anode bags.

For more details: EW pilot plant sxk-275

Client: Managem Group

Location: Morocco

Capacity: 0.5 kg per day

Project Number: sxk-275



SX Kinetics manufactured this electrowinning pilot plant for a Managem's research centre in Morocco. The EW cell can be use with anode diaphragm bags. It can be used for copper EW project without the diaphragm bags or it can be used for electrowinning of cobalt or nickel with the anode bags.




  EW plant for electrowinning gold.

For more details: EW pilot plant sxk-279

Client: Reghol Group Ltd

Location: Ghana

Capacity: 5.25 kg Au per week

Project Number: sxk-279



SX Kinetics manufactured this gold electrowinning plant for a customer in Ghana. The EW plant has the capacity to produce 5.25 kg of gold per week.




  Electrowinning pilot plant with anode diaphragms.

For more details: EW pilot plant sxk-280

Client: Curtin University

Location: Australia

Capacity: 0.5 kg per day

Project Number: sxk-280



SX Kinetics manufactured this electrowinning pilot plant for a  University in Australia. The EW cell can be use with anode diaphragm bags. It can be used for copper EW projects without the diaphragm bags or it can be used for electrowinning of cobalt or nickel with the anode bags.




  EW pilot plant for copper, cobalt and nickel.

For more details: EW pilot plant sxk-283

Client: CanMet

Location: Ottawa, Canada

Capacity: 0.5 kg cobalt per day

Project Number: sxk-283



SX Kinetics manufactured this electrowinning pilot plant for CANMET, a research centre in Ottawa, Canada. The EW cell has the option to be use with anode diaphragm bags. It can be used for copper EW projects without the diaphragm bags or it can be used for electrowinning of cobalt or nickel with the anode bags. The pilot plant included the rectifier and four peristaltic metering pumps.






For more details: EW pilot plant sxk-299

Client: Ascend Elements

Location: Westborough, MA, USA

Capacity: 0.5 kg metal per day

Project Number: sxk-299



This electrowinning pilot plant can be used for copper EW projects without the diaphragm bags or it can be used for electrowinning of cobalt or nickel with the anode bags. The pilot plant included the rectifier and four peristaltic metering pumps.




For more details: EW pilot plant sxk-305

Client: Global Resource Engineering, Ltd.

Location: Golden, CO, USA

Capacity: 0.5 kg metal per day

Project Number: sxk-305



This electrowinning pilot plant can be used for copper EW projects without the diaphragm bags or it can be used for electrowinning of cobalt or nickel with the anode bags. The pilot plant included the rectifier and four peristaltic metering pumps.







| HOME | SITE MAP | SX PLANTS | EW PLANTS | LEACHING | HYDROMET | COALESCERS | SERVICES | PROJECTS | TECHNOLOGYDOWNLOAD | CONTACT |

This page was last updated on 05/08/24

39A Hamilton Avenue, Cobourg, Ontario, Canada, K9A 1V7

© Copyright 2002 -2024  SX Kinetics, Inc. All Rights Reserved                                               email: steven.webster@sxkinetics.com
