We design and manufacture leaching pilot plant equipment for hydrometallurgical test programs including leaching columns, heap leaching test cribs, and agitation leaching plants.



We Provide Hydrometallurgical Pilot Plant Equipment to Include:

  • Solvent extraction plants (see links at bottom of page)

  • Continuous and batch agitation leaching circuits

  • Heap leaching columns and larger test cribs

  • Counter-current decantation (CCD) circuits

  • Precipitation and product recovery circuits

  • Thickeners, clarifiers, and filtration equipment

  • Electrowinning circuits complete with anodes, cathodes, and rectifier

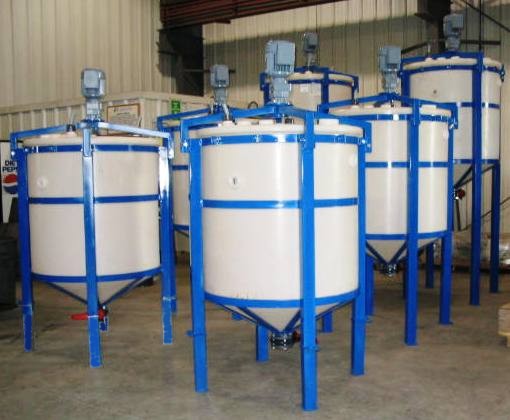

Agitated leach tanks for a hydrometallurgical pilot plant.

For more details: Leach Pilot Plant 1

Low Acid Leach Circuit:



SX Kinetics designed, manufactured, and installed this pilot scale agitation leach circuit. The leach tanks included baffles, feed wells, down-comers in-line helical gear mixers with variable frequency drives (VFD's), stainless steel impellers, and temperature controlled immersion heaters. The tanks were mounted on a skid and were pre-plumbed and wired prior to delivery.

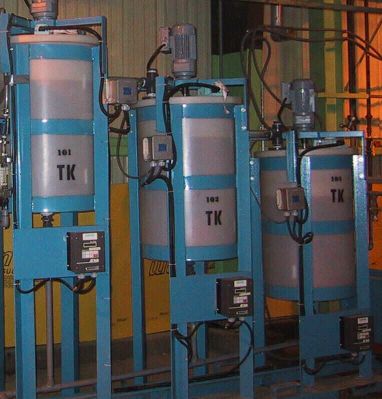

Agitation pilot plant tanks wraped in fibreglass (FRP) for pilot plant leach circuit.

 For more details: Leach Pilot Plant 2

High Acid Leach Circuit:



SX Kinetics designed and manufactured this leaching pilot plant with three cascading agitation tanks. The tanks were encased in fibreglass re-enforced plastic (FRP) with in-line helical mixer motors coupled to efficient hydrofoil impellers encased in PVC.




Laboratory leaching pilot plant.

For more details: Leach Pilot Plant 3

Atmospheric Leaching Pilot Plant:


SX Kinetics designed and manufactured this bench scale leach pilot plant for the continuous production of leach solution for feed to our laboratory scale solvent extraction pilot plant. The leach vessels included baffles, feed wells, immersion heaters, and variable speed mixer motors.

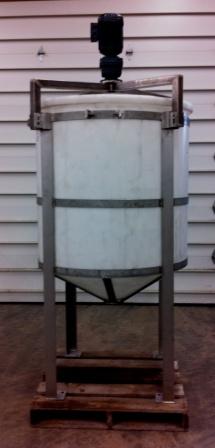

Reaction tank for a hydrometallurgical pilot plant.

For more details: Leach Pilot Plant 4

Agitation Reaction Tank:


SX Kinetics designed and manufactured this reaction tank for the Royal Canadian Mint.

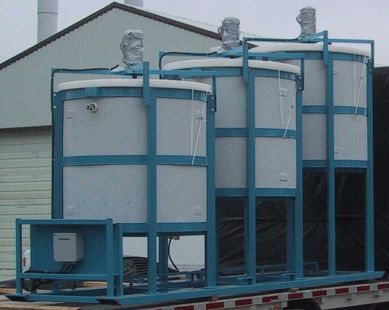

Leach tanks arranged for cascading flow.

For more details: Leach Pilot Plant 5

Continuous Agitation Leach Tanks:


SX Kinetics manufactured these agitation leach tanks for a client in Ottawa, Canada.

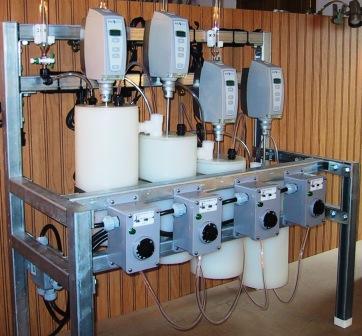

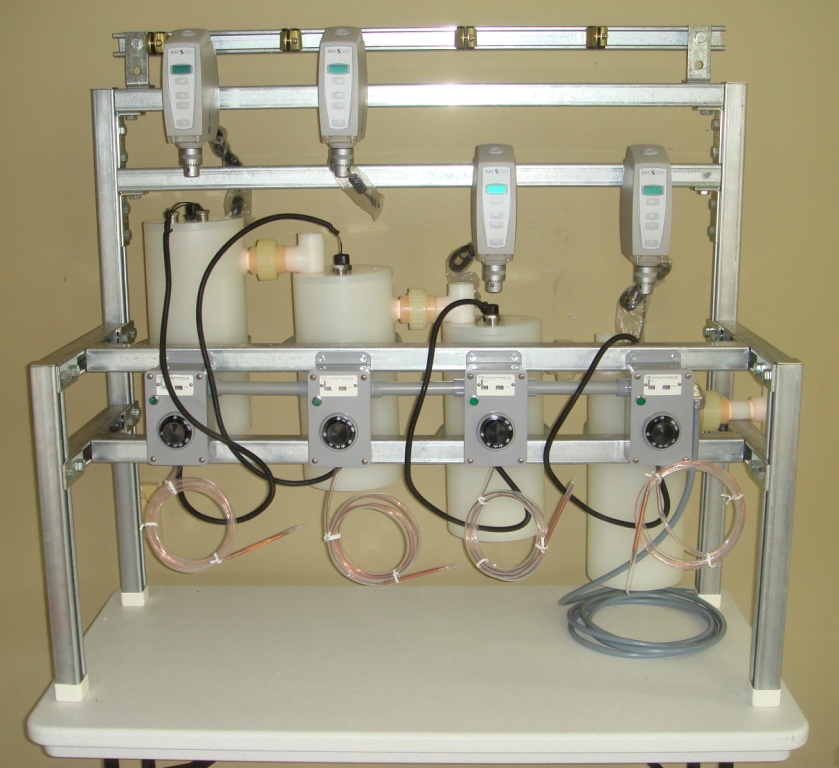

Laboratory agitation leach pilot plant

For more details: Leach Pilot Plant 6

Atmospheric Leaching Pilot Plant:


SX Kinetics designed and manufactured this bench scale leach pilot plant for a research test program at a University in South Africa. The leach vessels included baffles, feed wells, immersion heaters, and variable speed mixer motors. Feed and discharge tanks were also provided.




For more details: Leach Pilot Plant 7

Client: ITS Science & Medical PTE Ltd.

Site Location:

Plant Capacity: 50 to 200 mL/min

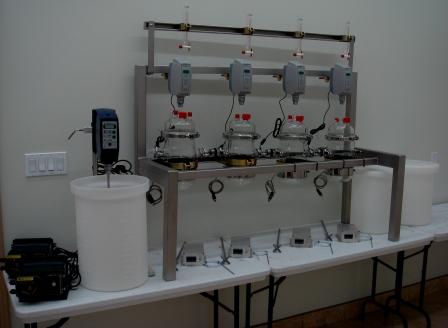

SX Kinetics’ manufactured this bench scale leach pilot plant for the continuous production of SX feed solution. Features Pyrex vessels and titanium impellers.

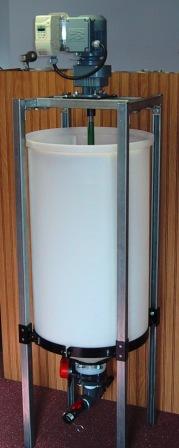

Agitation tank for batch leaching.

For more details: Leach Pilot Plant 8

Client: Cytec Metal Extraction Products

site Location:

Plant Capacity: 945 L



SX Kinetics manufactured this batch leach tank for preparation of copper SX feed solutions.

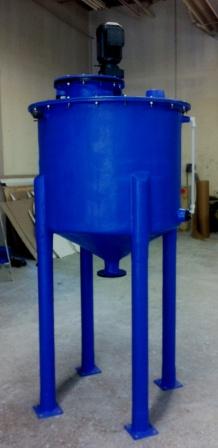

Fibreglass leach tank.

For more details: Leach Pilot Plant 9

Client: Royal Canadian Mint

Site Location:

Plant Capacity: 500 L



SX Kinetics manufactured this fibreglass leach tack for a Pt-Pd leaching plant.

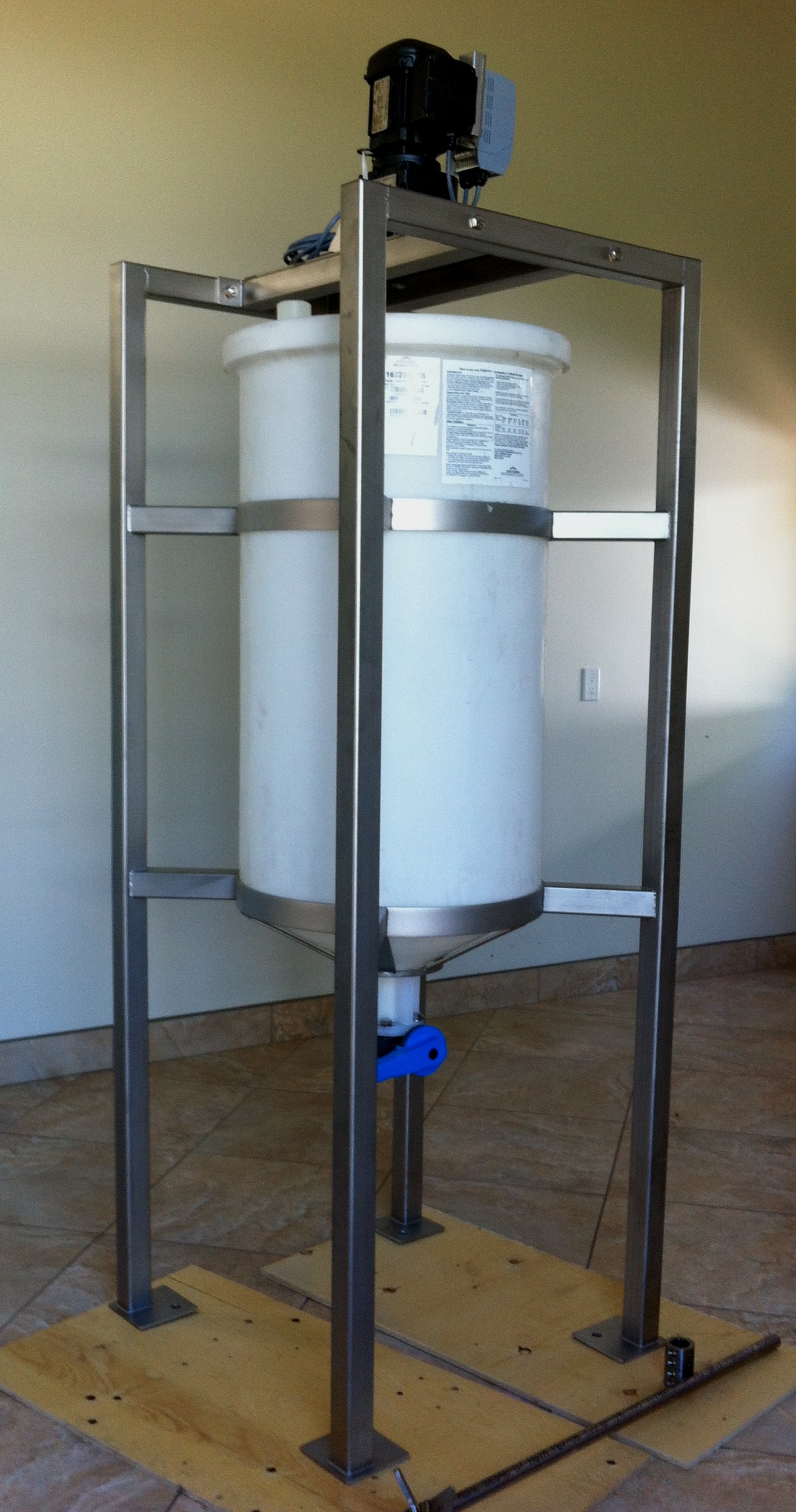

Agitation batch leach tank.

For more details: Leach Pilot Plant 10

Client: ITS Science & Medical PTE Ltd.

Site Location:

Plant Capacity: 208 L



SX Kinetics manufactured this agitation leach tank for a customer in Indonesia.

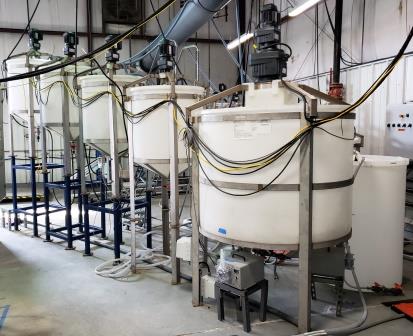

Leaching pilot plant for recovery of scandium.

For more details: Leach Pilot Plant 223

Client: University of Kentucky

Location: USA

Capacity: 10 L/min



SX Kinetics designed and manufactured this leaching plant for a project to recover scandium from coal mining waste rock.

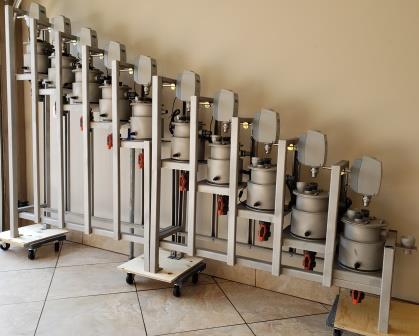

  Carbob in pulp (CIP) leach pilot plant for recovery of gold.

Client: Ineko

Location: Russia

Capacity: 10 L/min



SX Kinetics designed and manufactured this carbon (or resin) in pulp leaching plant for gold recovery. The pilot plant has 10 stainless steel vessels, 3.5 L each, arranged for counter-current flow of carbon.
