We design and manufacture solvent extraction pilot plants for a wide variety of applications. The following summarizes our portable and modular solvent extraction pilot plants that we recently manufactured for various clients:

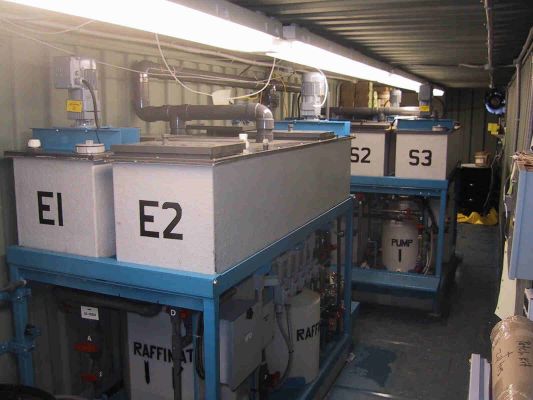

Portable solvent extraction pilot plant inside a 40 foot shipping container for the extraction of chromium from waste water.

For more details: Portable / Modular SX Plant 1

Client:  Versitile Industries / Battelle
Site Location: Columbus, OH, USA
Plant Capacity: 32 L/min (org + aq)



SX Kinetics designed, manufactured, and assembled this plant inside a 40’ shipping container. This mobile SX plant was operated at various chrome electro-plating sites to demonstrate a new solvent extraction process for the recovery of chromium from spent plating bath solutions. SX Kinetics provided on site technical consulting during plant start-up.




Modular proto-type solvent extraction plant for the removal for chromium from waste water.

For more details: Portable / Modular SX Plant 2

Client:  Versitile Industries / Battelle
Site Location:  Layton, Ut, USA
Plant Capacity: 132 L/min (org + aq)



SX Kinetics designed and manufactured this modular solvent extraction plant for the removal of chromium from electro plating wastewater within five modular shipping frames. This plant produced a pure solution of chromium that was used as a component in the manufacture of stainless steel. It also eliminated the traditional wastewater treatment method that produced toxic chromium sludge. SX Kinetics provided technical consulting for plant start up and initial operation

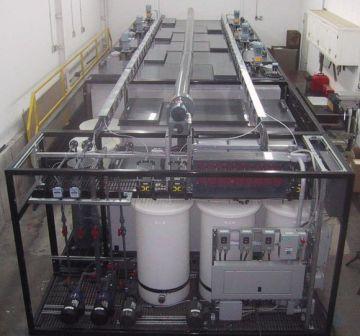

Modular solvent extraction pilot plant complete with mixer-settlers, feed tanks, coalescer, organic tank, crud treatment, and process control instrumentation.

For more details: Portable / Modular SX Plant 3

Client:  Moscow State Institute of Steel and Alloys (Technological University)
Site Location:  Moscow, Russia
Plant Capacity: 100 L/min (org + aq)



SX Kinetics designed and manufactured this modular copper solvent extraction pilot plant within ten modular shipping frames. Each modular shipping frame had outside dimensions slightly smaller than the opening of a standard shipping container. The complete plant was transported to Russia inside three 40' containers and re-assembled at the client's site. This plant produced a rich electrolyte for copper electrowinning from a vat leach solution containing 5.6 g/L copper.

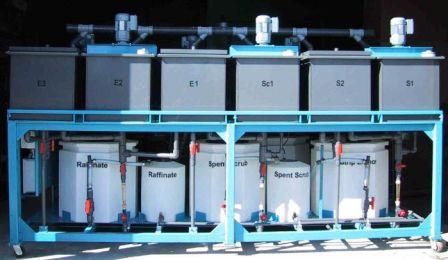

Portable solvent extraction pilot plant with 6 stages for the recovery of zirconium

For more details: Portable / Modular SX Plant 4

Client:  MRSI / CMS
Site Location:  Canon City, CO, USA
Plant Capacity: 26 L/min (org + aq)



SX Kinetics, Inc. designed and manufactured this solvent extraction plant for the demonstration of a new process to produce high purity zirconium.

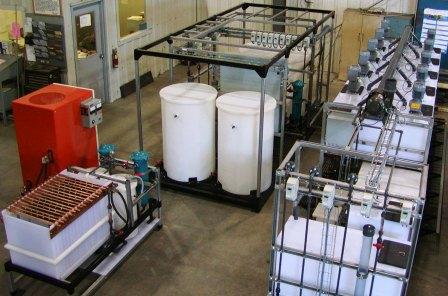

Solvent extraction and electrowinning pilot plant within modular frames.

For more details: Portable / Modular SX Plant 5

Client:  IMPRC
Site Location:  Tehran, Iran
Plant Capacity: 8 L/min (org + aq)



SX Kinetics, Inc. designed and manufactured this solvent extraction and electrowinning pilot plant for the solvent extraction and electrowinning of copper, cobalt, and nickel.




Modular solvent extraction pilot plant for copper.

For more details: Portable / Modular SX Plant 6

Client:  Rio Tinto & SNC Lavalin
Site Location:  Northern Peru
Plant Capacity: 40 L/min (O+A)

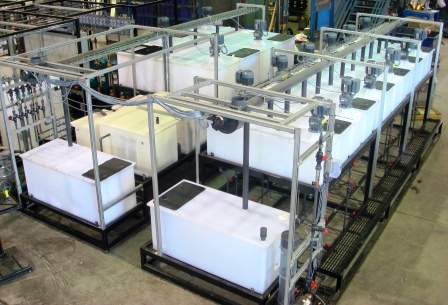

This pilot plant was manufactured by SX Kinetics for a project in Peru. It has six separate extraction circuits and one strip circuit. The pilot plant was used to evaluate six different heap leaches simultaneously.




Solvent extraction and electrowinning modular pilot plant.

For more details: Portable / Modular SX Plant 7

Client:  Sary Kazna LLP
Site Location:  Kounrad, Kazakhstan
Plant Capacity: 200 L/min (org + Aq)

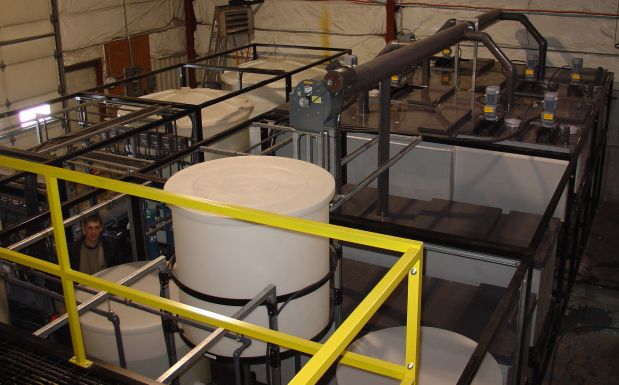

SX Kinetics designed and manufacture a complete "turn-key" solvent extraction and electrowinning pilot plant for a copper dump leaching project in Kounrad (near Balqash) Kazakhstan.  The plant produced 240 kg per day of copper cathodes from 100 L per minute of leach solution (PLS). To view photos of this plant during construction, commissioning, and operation go to:

Copper SX / EW Pilot Plant




For more details: Portable / Modular SX Plant 8

Client: Rio Tinto

Location: Utah, USA

Capacity: 100 L/min of PLS



SX Kinetics designed and manufactured this modular SX pilot plant for a project to demonstrate bacterial heap leaching of chalcopyrite ore.
